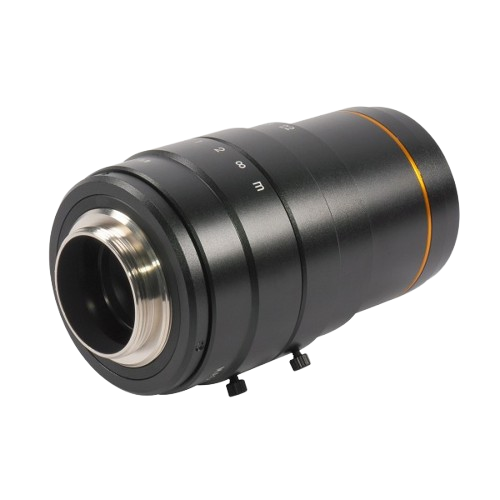

Medel Elektronik | LM50XC | 4/3″ 50mm 20MP C-Mount Lens
Lens
4/3" 20 Megapixel C-mount industrial lens
Focal length 50mm
Focal length 50mm
For sensors with a pixel size from 3.0μm
For sensors with a pixel size from 3.0μm
  • 4/3″ 20 Megapixel C-mount industrial lens
  • Focal length 50mm
  • For sensors with a pixel size from 3.0μm
  • Suitable for Sony IMX387 and Sony IMX540 sensors and many more
  • Low distortion
  • For high-end inspections
  • Broadband Coating: Transmission from VIS to NIR

Product number: 11002

  • Features
  • Values
  • Technical Details
  • Product Images
4/3" 20 Megapixel C-mount industrial lens
Focal length 50mm
For sensors with a pixel size from 3.0μm
Suitable for Sony IMX387 and Sony IMX540 sensors and many more
Low distortion
For high-end inspections
Broadband Coating: Transmission from VIS to NIR
Focal Length
f=50mm
Max, Diameter (RATIO)
F-1:2.0~22
Element
6 Groups 7 Elements
Medel Elektronik | LM50XC | 4/3″ 50mm 20MP C-Mount Lens
Medel Elektronik | LM50XC | 4/3″ 50mm 20MP C-Mount Lens
"We Add Value to Turkey"
Aperture (F-stop):
2 - 22
Aperture (control):
Manual
Application field:
Broadcast, Machine Vision
Back focus in air (mm):
21,6
Close up ring
Without / 1mm Ring / 5mm Ring / 10mm Ring / 20mm Ring
Control (focus):
Manual
Field of view at minimum working distance, horizontal (mm):
100
Field of view at minimum working distance, vertical (mm):
75
Filter size (mm):
M37,5 x P0,5
Focal length (mm):
50
Focus range (m):
0,3 - ∞
M.W.D.
300mm / 273mm / 204mm / 158mm / 115mm
Magni­fication
0.18x / 0.20x / 0.28x / 0.39x / 0.59x
Megapixel:
20
Mount:
C-mount
Pixel size (µm):
3
Resolution, centre (lp/mm):
160
Resolution, margin (lp/mm):
80
Sensor size:
4/3"
Series:
XC
Size (mm):
Ø47 X 78
TV distortion (%):
0,8
Temperature range (℃):
-10°C - +50°C
Type of lens:
Fixed Focal Lens
Wavelength range:
Broad Band Coating (400nm – 1000nm), Peak Coating (400nm – 1000nm)
Weight (g):
235
