Medel Elektronik | LM8HC-SW | 1″ 8mm SWIR C-Mount Lens
Lens
1" C-mount Industrial Lens
Focal length 8mm
Focal length 8mm
Optimized
Optimized for SWIR: High transmission from 800nm up to 1900nm
  • 1″ C-mount Industrial Lens
  • Focal length 8mm
  • Optimized for SWIR: High transmission from 800nm up to 1900nm
  • For applications such as solar cell inspection, waste sorting and biological research

Product number: 10746

  • Features
  • Values
  • Technical Details
  • Product Images
1" C-mount Industrial Lens
Focal length 8mm
Optimized for SWIR: High transmission from 800nm up to 1900nm
For applications such as solar cell inspection, waste sorting and biological research
Focal Length
f=8mm
Max. Diameter (RATIO)
F=1:1.4~16
Picture Size
9.6x12.8mm / 6.6×8.8mm / 5.4x7.2mm

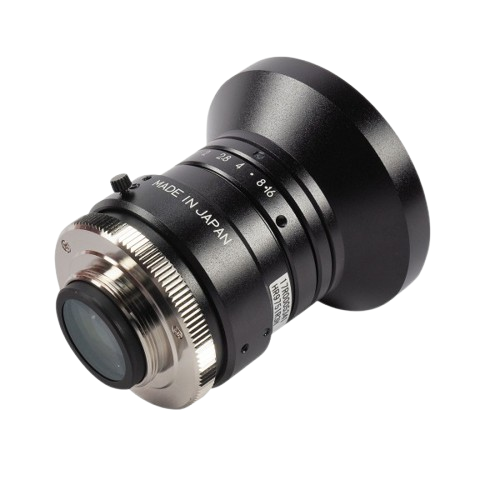

Medel Elektronik | LM8HC-SW | 1″ 8mm SWIR C-Mount Lens

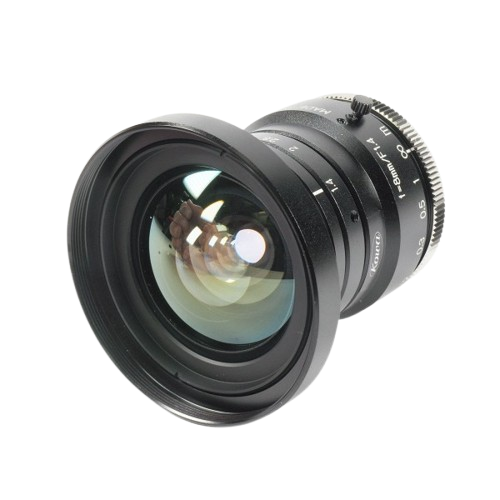

Medel Elektronik | LM8HC-SW | 1″ 8mm SWIR C-Mount Lens
"We Add Value to Turkey"
Aperture (F-stop):
1,4 - 16
Aperture (control):
Manual
Application field:
Machine Vision
Back focus in air (mm):
11,2
Control (focus):
Manual
Filter size (mm):
M55 x P0,75
Focal length (mm):
8
Focus range (m):
0,3 - ∞
Mount:
C-mount
Resolution, centre (lp/mm):
120
Resolution, margin (lp/mm):
80
Sensor size:
1"
Series:
HC-SW
Size (mm):
Ø57 X 58
TV distortion (%):
-1,2
Temperature range (℃):
-10°C - +50°C
Type of lens:
Fixed Focal Lens
Wavelength range:
SWIR (1000nm - 2000nm)
Weight (g):
200
